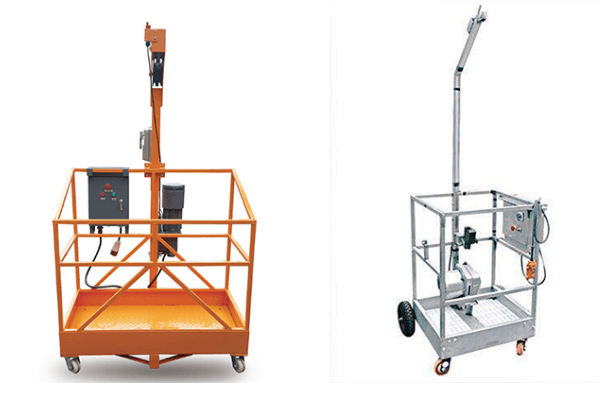

Suspended chair is a kind of small suspended platform that only fits one person. Hengxiang produces ZLP 250 single person suspended platform in strict compliance with the production process and inspection standards. As a specialized temporary lifting equipment, our ZLP 250 single suspended platform has obetained ISO9001 and CE certifications.
Suspended working platform parts
A complete ZLP250 single suspended platform system is including two parts: working platform and suspension mechanism.
The suspended cradle parts are including working platform, electric control box, hoist, safety lock, steel wire rope.
The suspension mechanism are including front support, upper column, front beam, rear beam, middle beam, balance weight, rear support.
Single suspended platform specifications
|
Tpye
|
ZLP250
|
|
Rated Load
|
250kg
|
|
Lifting speed
|
9m/min
|
|
Voltage-3phase
|
380V(415V/220V)
|
|
Frequency
|
50Hz/60Hz
|
|
Power
|
1.1×1
|
|
Hoist
|
LTD50
|
|
Safety lock
|
OSL308
|
|
Dia.of Wire Rope
|
4×31SW+FC-8.3mm
|
|
Plateform Size (L×W×H)
|
1.2×0.65×2.3M
|
|
Weight of Suspended Jibs
|
170kg
|
|
Weight of Lifting Part
|
200kg(Steel)
|
|
140kg(Aluminum
|
|
Counter Weight
|
350kgs
|
|
20GP Qty Of Package
|
10Sets
|
|
*The weight of lifting part includes platform,hoist,safety locks and electric control system.
|
ZLP250 suspended chair features & applications
1. This product is used by a single person
2. The suspended cradle is easy to install and operate
3. more economical and practical
4. Applications: high-rise building construction, curtain wall installation, window cleaning, exterior decoration and maintenance. It can also be used for large tanks, bridges, dams and other construction operations.
In addition, ZLP500 rope suspended platform, ZLP630 suspended cradle, ZLP800 suspended platform, ZLP1000 suspended scaffolding are also our best-selling products. All the suspended platforms can be customized according to customers’ requirements. Send your inquiry to us , and get the latest price.
|
